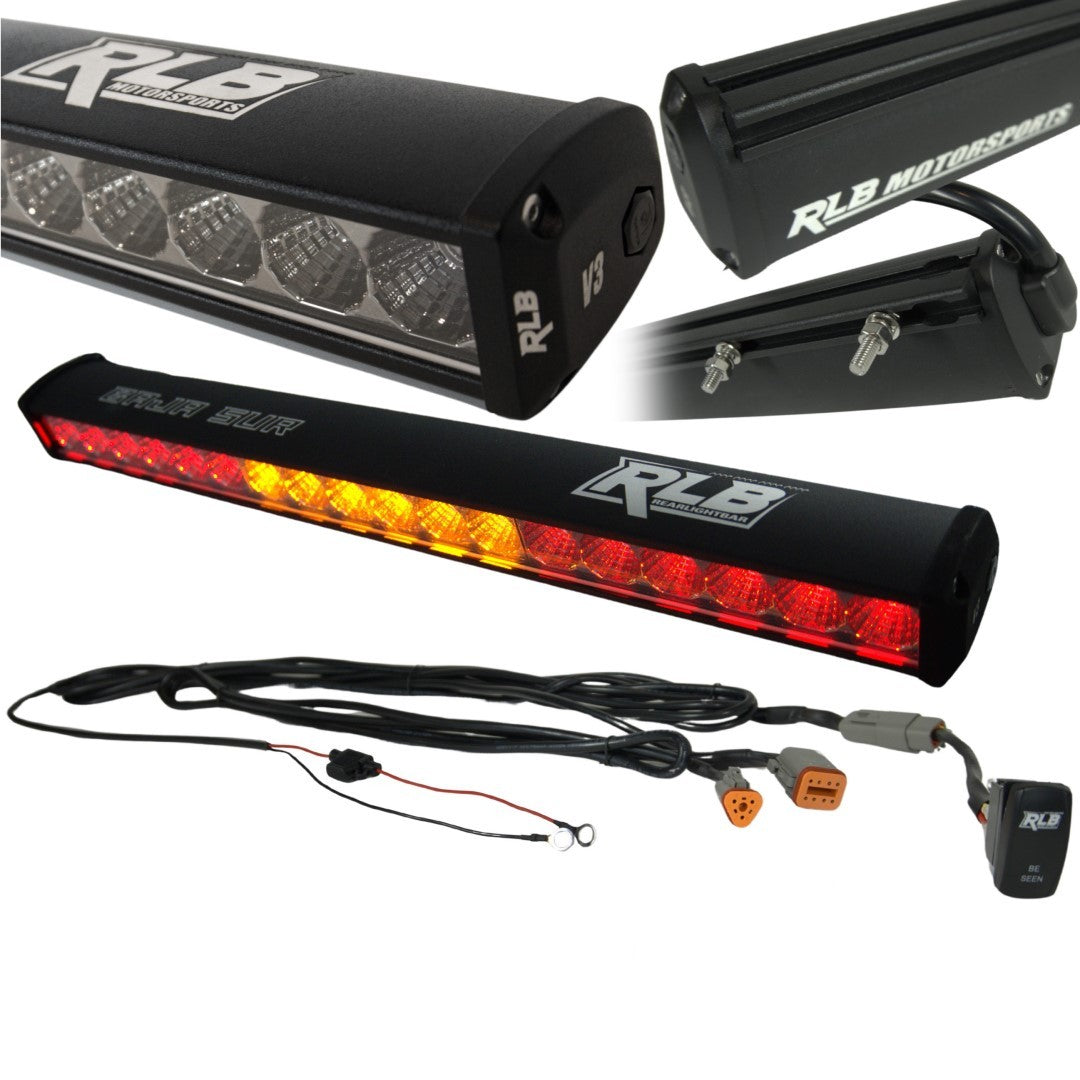

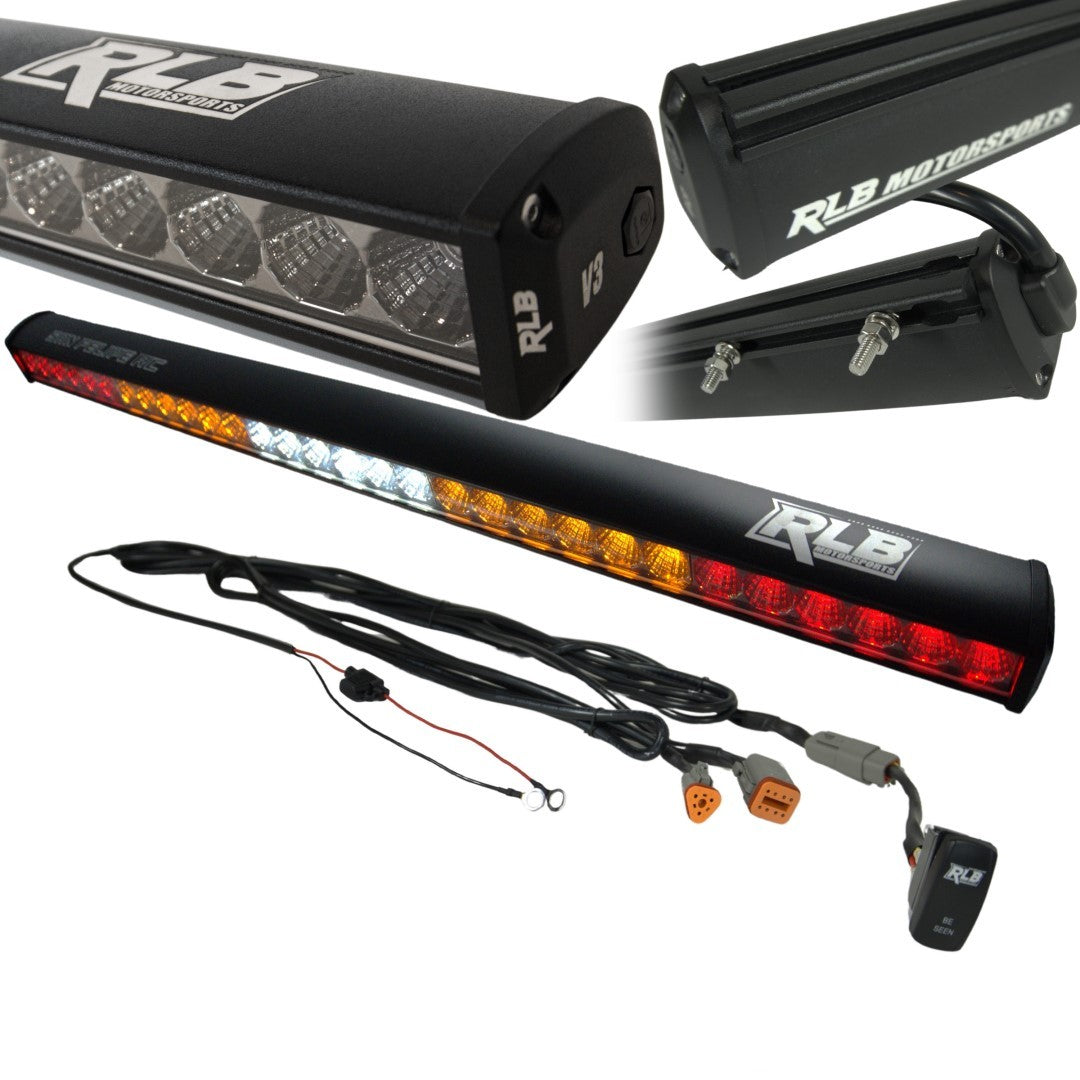

Chase Light- San Felipe V3 (Amber/White)

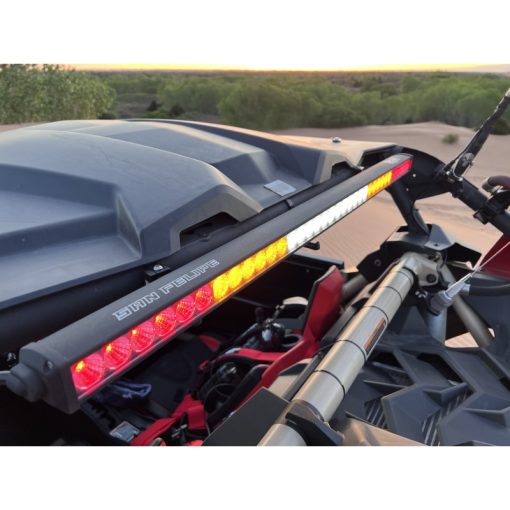

Includes Amber LED dust lights with the ability to control the ON/OFF function of the center reverse/cargo WHITE LED lights with the included three-position rocker switch.
Rear light bar features red LED lights for both running and brake functions. Blinker capable with any blinker kit.

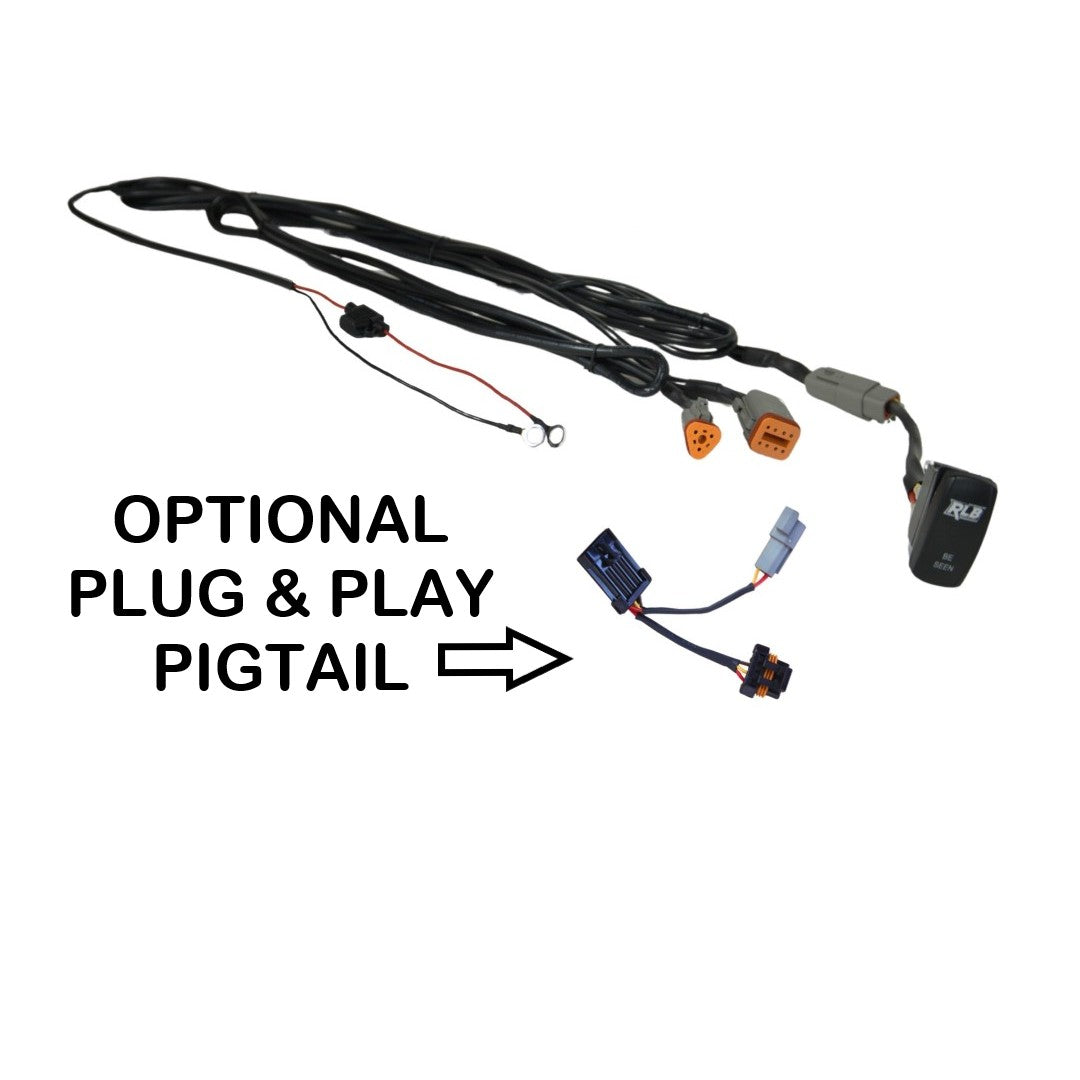

100% COMPLETELY PLUG-N-PLAY for easy installation on all UTVs. RLB rear chase lights come with high-quality GM STYLE Deutsche connectors that plug directly into our compatible pigtails. No more wire cutting or crimping required. Pigtails are available for all make and model UTVs; Polaris, Can-Am, Kawasaki, Textron, Honda, Yamaha, and Speed.
Generally used on most UTVs with narrower cage, RZR Pro, 2019 and newer RZRs, Jeeps, Class 10, and a roof rack for dust and chase light safety.
FEATURES:
-
RUNNING/BRAKE LED LIGHTS: Blinker capable with any blinker kit (sold separate)
-
LED: Dual Function AMBER/WHITE
-
PROPRIETARY ROCKER SWITCH: Three position Multi-Function Rocker Switch; 1) AMBER OFF, 2) AMBER ON, and 3) MOMENTARY – Quick press to change AMBER strobe pattern, long press – 2 second hold, turns WHITE utility LED ON/OFF. BESEEN™LED illuminated Rocker Switch fits all factory installed rocker slots, for both UTV and automotive.
-
LED STROBE LIGHT COMBINATIONS: 7 pattern combos; 1 SOLID AMBER, and 6 different AMBER strobe patterns
-

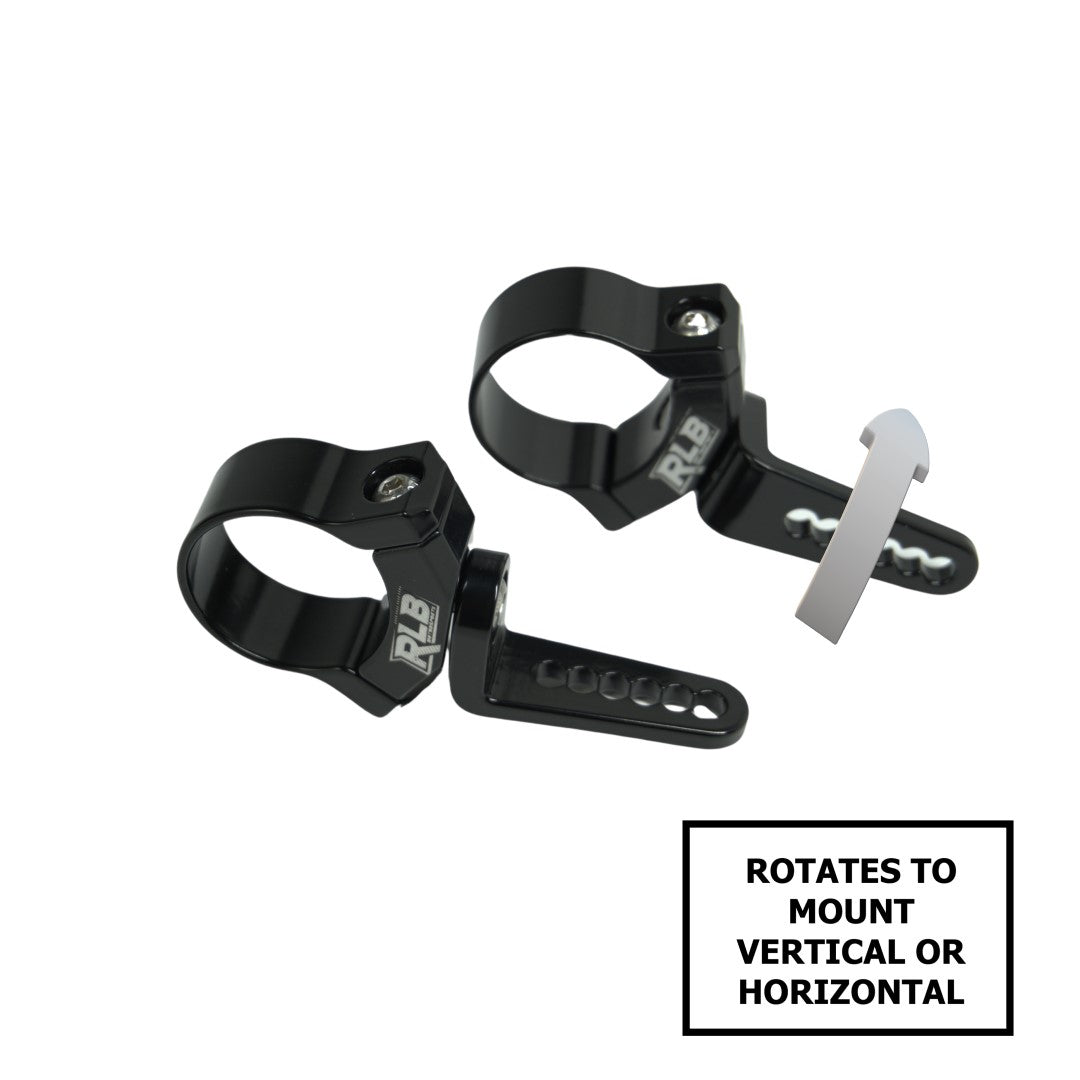

DUAL VARIABLE TRAC-MOUNTING-SYSTEM: 2 mounting slots run the full-length of light bar; 1 vertical (back side of housing) 1 horizontal (bottom of housing)
- PLUG & PLAY FOR ALL POLARIS RZR MODEL UTVs – NO EXTERNAL RELAY NEEDED
- BUILT-IN OVERVOLTAGE PROTECTION
SPECS:
-
LED COLOR: RED: 620-360NM AMBER: 585-595NM WHITE: 6500-7000K
-
LED SOURSE: Epistar 1w LED
-
LED LIFE: 50,000-hour life expectancy
-
LENS: Hard Impact Resistant Polycarbonate
-
HOUSING: Powder coated Aircraft Grade Aluminum
-
IP Degree: IP67 Fully Waterproof Housing
-
WIRING: Sealed GM Style Deutsch waterproof connectors
-
HARDWARE: Stainless steel, mounting bolts included
- Universal for all12V power source systems
Full Power Consumption: Dimensions:
36”: 36 Watt 36″L x 1.750″H x 2.125″D
30”: 30 Watt 30.125″L x 1.750″H x 2.125″D
22”: 22 Watt 22″L x 1.750″H x 2.125″
