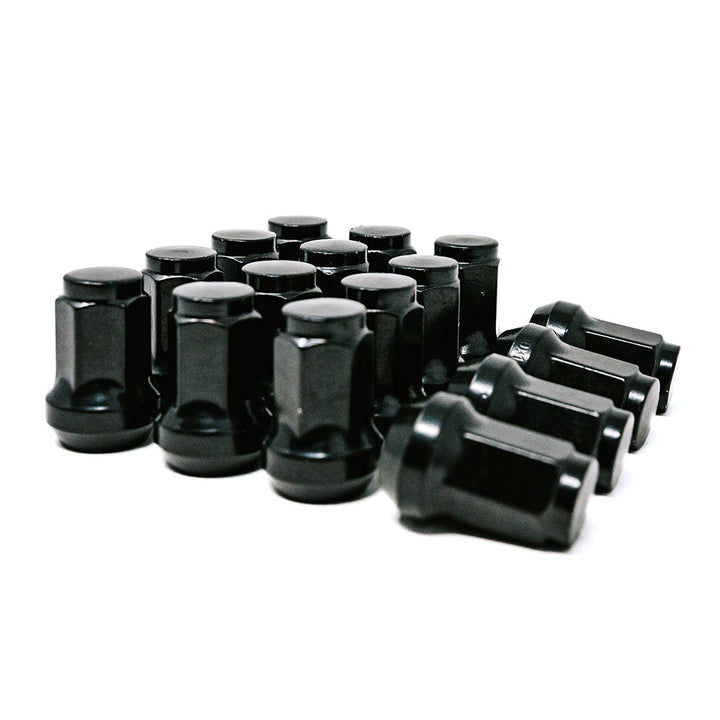

10X1.25 4 LUG KIT 14MM HEX 1.11" BLACK
- M10 x 1.25 Thread
- Includes 16 lug nuts
- Acorn · 14 mm hex
- 1.11 in length (product title)
- Gloss Black finish
SKU: V10X125B-KIT
View Product
FIND THE RIGHT FIT. RIDE WITH CONFIDENCE.
UTV WHEEL FITMENT GUIDE
Get the correct bolt pattern, center bore, lug thread and installation kit for your UTV. Quick, easy and accurate fitment information for all major brands.
Select Your Vehicle
Choose Your UTV Make
Jump to your make to view detailed wheel fitment information.
Polaris UTV
| Model | Years | Bolt Pattern | Center Bore | Lug Thread | Valor Lug Kit |
|---|---|---|---|---|---|
| RZR RS1 | 2018–2020 | 4x156 | 132 mm | M12x1.50 | V12X150B-KIT5 |
| RZR Pro R | 2022+ | 5x114.3 | 86 mm | M12x1.50 | V12X150B-KIT5 |
| RZR Pro R 4 | Confirm year | 5x114.3 | 86 mm | M12x1.50 | V12X150B-KIT5 |
| RZR Turbo R | Confirm year | 5x114.3 | 86 mm | M12x1.50 | V12X150B-KIT5 |
| RZR Turbo R 4 | Confirm year | 5x114.3 | 86 mm | M12x1.50 | V12X150B-KIT5 |
| RZR Pro S | Confirm year | 5x114.3 | 86 mm | M12x1.50 | V12X150B-KIT5 |
| RZR Pro XP | 2019+ | 4x156 | 132 mm | M12x1.50 | V12X150B-KIT5 |
| RZR Turbo S | 2018–2021 | 4x156 | 132 mm | M12x1.50 | V12X150B-KIT5 |
| RZR XP 1000 / XP 1000 4 | 2015–2023 | 4x156 | 132 mm | M12x1.50 | V12X150B-KIT5 |
| Xpedition | 2023+ | 5x114.3 | 86 mm | M12x1.50 | V12X150B-KIT5 |
| Ranger XD 1500 | 2024+ | 5x114.3 | 86 mm | M12x1.50 | V12X150B-KIT5 |
| Ranger 1000 | Confirm year | 4x156 | 132 mm | M12x1.50 | V12X150B-KIT5 |
| General 1000 | 2015+ | 4x156 | 132 mm | M12x1.50 | V12X150B-KIT |
| Ranger / RZR 800–900 (legacy) | Confirm year | 4x156 | 132 mm | 3/8-24 | V38B-KIT |
Swipe left/right to see all six columns
Can-Am UTV
| Model | Years | Bolt Pattern | Center Bore | Lug Thread | Valor Lug Kit |
|---|---|---|---|---|---|
| Maverick R | 2024+ | 6x139.7 | Verify | M12x1.50 | V12X150B-KIT6 |
| Maverick X3 / X3 Max | Confirm year | 4x137 | 112 mm | M12x1.50 | V12X150B-KIT5 |
| Defender HD11 | Confirm year | 4x137 | 112 mm | M12x1.50 | V12X150B-KIT5 |
| Defender (pre-2026) | Through 2025 | 4x137 | 112 mm | M10x1.25 | V10X125B-KIT |
| Commander / Commander Max | Confirm year | 4x137 | 112 mm | M10x1.25 | V10X125B-KIT |
Swipe left/right to see all six columns
Honda UTV
| Model | Years | Bolt Pattern | Center Bore | Lug Thread | Valor Lug Kit |
|---|---|---|---|---|---|
| Pioneer 500 / 700 | Confirm year | 4x110 | 86 mm | M12x1.50 | V12X150B-KIT5 |
| Pioneer 1000 | Confirm year | 4x137 | 112 mm | M12x1.50 | V12X150B-KIT5 |
| Talon 1000X / 1000R | Confirm year | 4x137 | 112 mm | M12x1.50 | V12X150B-KIT5 |
| Big Red | Confirm year | 4x110 | 86 mm | M12x1.50 | V12X150B-KIT5 |
Swipe left/right to see all six columns
Kawasaki UTV
| Model | Years | Bolt Pattern | Center Bore | Lug Thread | Valor Lug Kit |
|---|---|---|---|---|---|
| Teryx / Teryx4 | Confirm year | 4x137 | 112 mm | M12x1.25 | V12X125B-KIT5 |
| Teryx KRX 1000 / KRX4 | Confirm year | 4x156 | 132 mm | M12x1.25 | V12X125B-KIT5 |
| Ridge | Confirm year | 4x156 | 132 mm | M12x1.25 | V12X125B-KIT5 |
| Mule | Confirm year | 4x137 | 112 mm | M12x1.25 | V12X125B-KIT5 |
| Mule PRO-FXT | Confirm year | 4x156 | 132 mm | M12x1.25 | V12X125B-KIT5 |
Swipe left/right to see all six columns
CFMoto UTV
| Model | Years | Bolt Pattern | Center Bore | Lug Thread | Valor Lug Kit |
|---|---|---|---|---|---|
| UFORCE U10 Pro | Confirm year | 5x114.3 | 86 mm | M12x1.25 | V12X125B-KIT5 |
| UFORCE U10 Pro XL | Confirm year | 5x114.3 | 86 mm | M12x1.25 | V12X125B-KIT5 |
| ZFORCE Z10 | Confirm year | 5x114.3 | 86 mm | M12x1.25 | V12X125B-KIT5 |
| ZFORCE Z10-4 Pro | Confirm year | 5x114.3 | 86 mm | M12x1.25 | V12X125B-KIT5 |
| XFORCE X10 | Confirm year | 5x114.3 | 86 mm | M12x1.25 | V12X125B-KIT5 |
| XFORCE X10-4 | Confirm year | 5x114.3 | 86 mm | M12x1.25 | V12X125B-KIT5 |
Swipe left/right to see all six columns
Yamaha UTV
| Model | Years | Bolt Pattern | Center Bore | Lug Thread | Valor Lug Kit |
|---|---|---|---|---|---|
| YXZ1000R | Confirm year | 4x156 | 132 mm | M12x1.25 | V12X125B-KIT5 |
| Wolverine | 2015–2017 | 4x110 | 86 mm | M12x1.25 | V12X125B-KIT5 |
| Wolverine / Wolverine RMAX | 2018+ (verify trim) | 4x156 | 132 mm | M12x1.25 | V12X125B-KIT5 |
Swipe left/right to see all six columns
Fitment depends on the exact model, model year, trim and modifications. Center-bore figures reflect Valor wheel fitment by bolt pattern, not independently verified factory hub measurements. Confirm lug-seat style, correct kit, clearance and OEM specifications before ordering or installing.
WHEEL FITMENT FAQ
COMMON QUESTIONS
What is a wheel bolt pattern or “bolt circle”?
A bolt pattern specifies the number of lug holes and the diameter of the circle they form. For example, 4×156 means four lug holes arranged on a 156 mm diameter circle. Confirm the pattern for your exact model and model year.
What wheel hub bore size do I need for my vehicle?
Check the vehicle hub diameter and the wheel’s center bore. The wheel needs adequate center-bore clearance, and some setups may call for hub-centric rings. Check the fitment chart and wheel manufacturer’s specifications for your exact machine.
What wheel lug nuts does my UTV require?
Use lug nuts that match your vehicle’s stud thread size and the wheel manufacturer’s required seat style. The correct size can vary by make, model, year and aftermarket wheel. Verify both specifications and follow the recommended torque procedure.
Get the Right Hardware
Installation Kits
Complete lug nut kits for a secure fit. Available in multiple thread sizes to match your UTV's requirements.

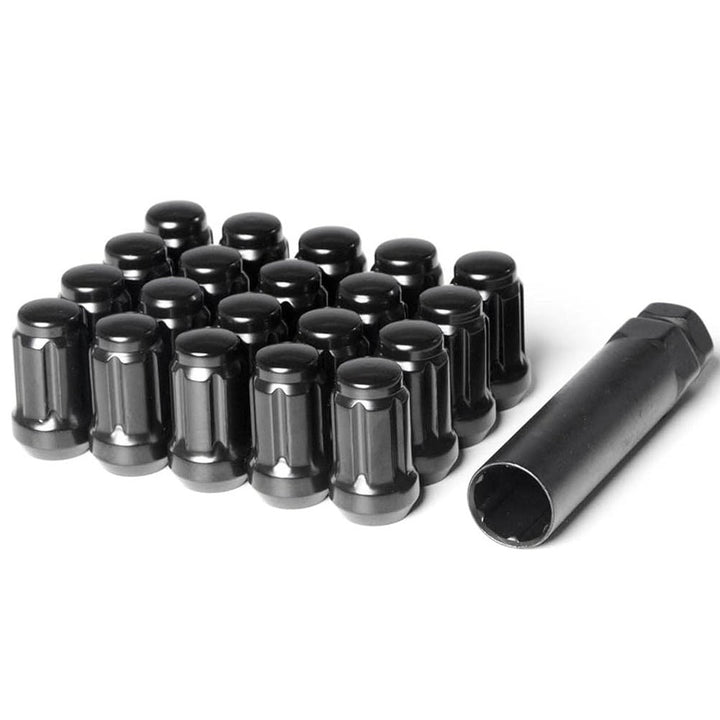

12X1.25 SPLINE 4/5 LUG KIT 1.38" BLACK
- M12 x 1.25 RH Thread
- Includes 20 lug nuts
- Bulge Spline · 15.8 mm hex
- 1.38 in length (product title)
- 20 mm socket OD
- Includes socket key
- Black finish
SKU: V12X125B-KIT5
View Product

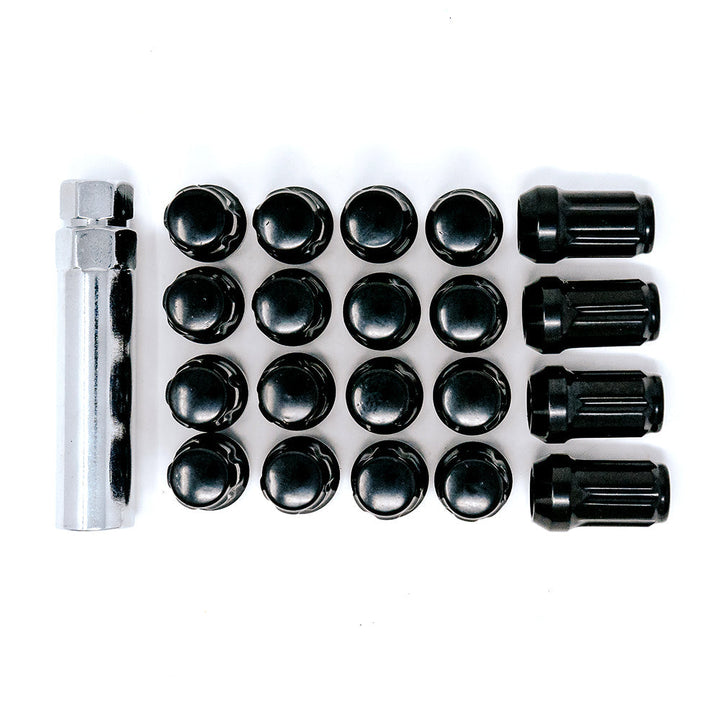

12X1.50 SPLINE 4/5 LUG KIT 1.38" BLACK
- M12 x 1.50 RH Thread
- Includes 20 lug nuts
- Bulge Spline · 15.8 mm hex
- 1.38 in length (product title)
- 20 mm socket OD
- Includes socket key
- Black finish
SKU: V12X150B-KIT5
View Product

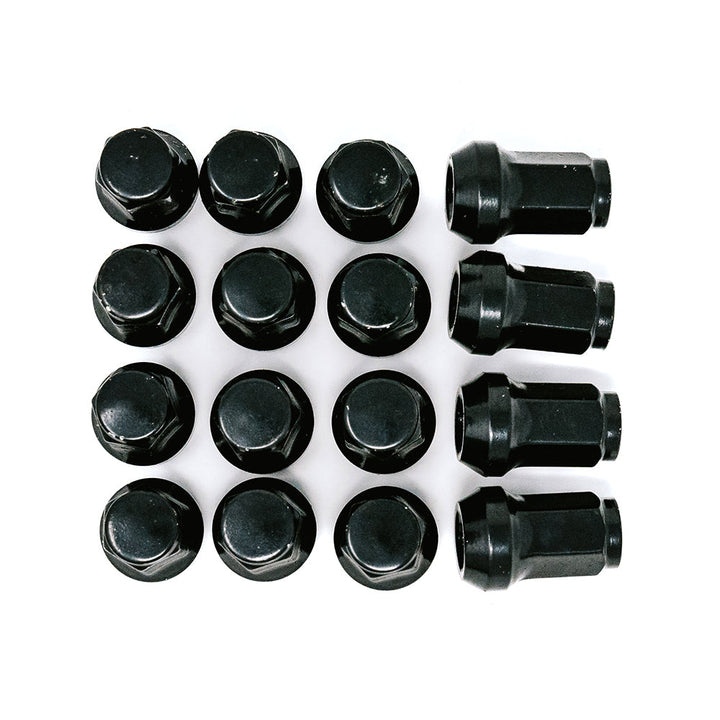

3/8" 4 LUG KIT HEX 1.38" BLACK
- 3/8 in - 24 Thread
- Includes 16 lug nuts
- Acorn · 14 mm hex
- 1.38 in length (product title)
- Gloss Black finish
SKU: V38B-KIT
View Product

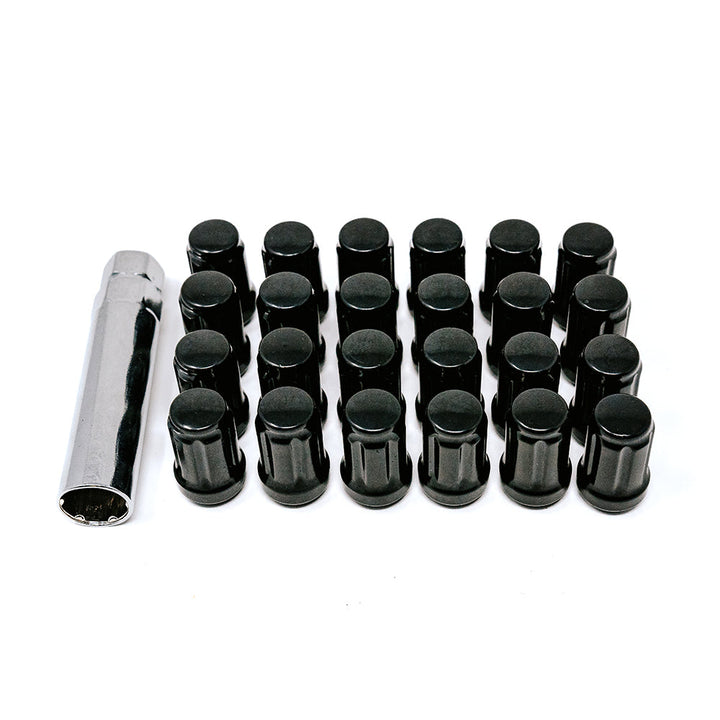

12X1.50 SPLINE 6 LUG KIT 1.38" BLACK
- M12 x 1.50 RH Thread
- Includes 24 lug nuts
- Bulge Spline · 15.8 mm hex
- 1.38 in length (product title)
- 20 mm socket OD
- Includes socket key
- Black finish
SKU: V12X150B-KIT6
View ProductBrowse Wheels by Pattern
Shop by Bolt Pattern
Shop our full selection of UTV wheels filtered by bolt pattern.

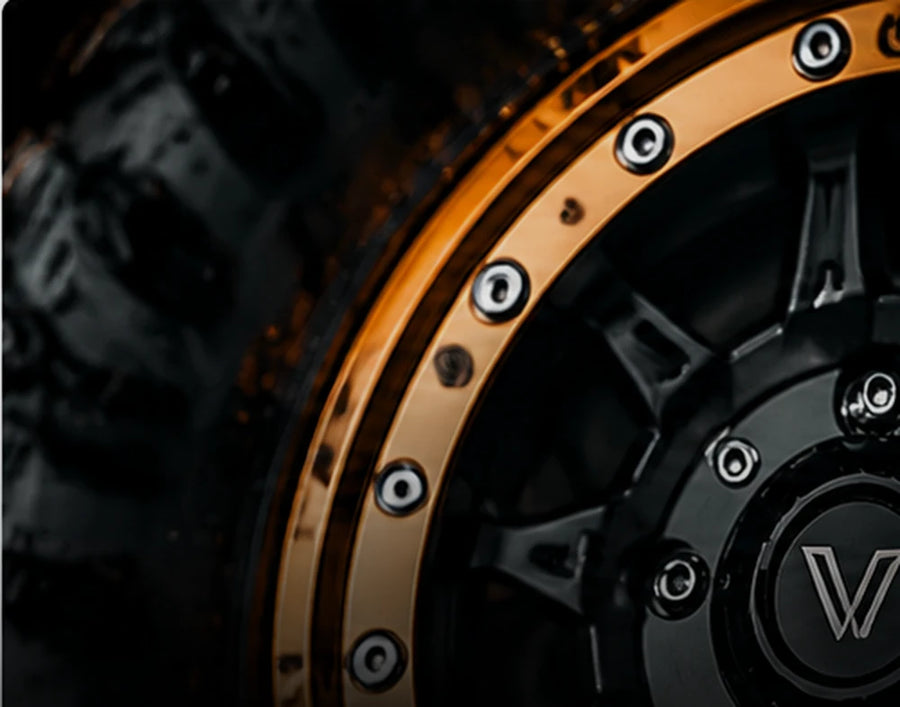

4 X 137
UTV Wheels
Shop Wheels

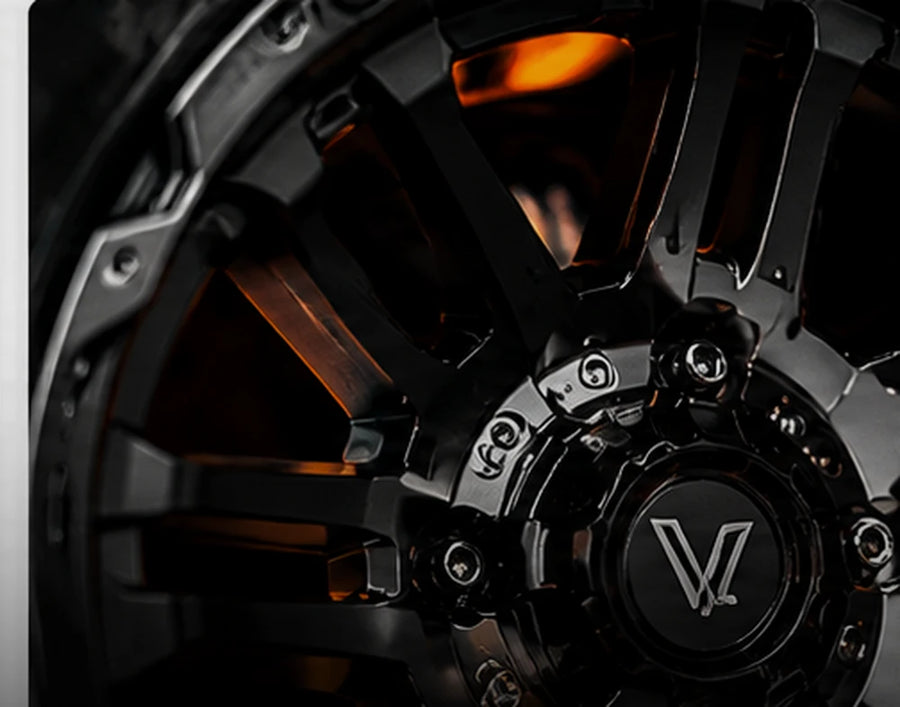

4 X 156
UTV Wheels
Shop Wheels

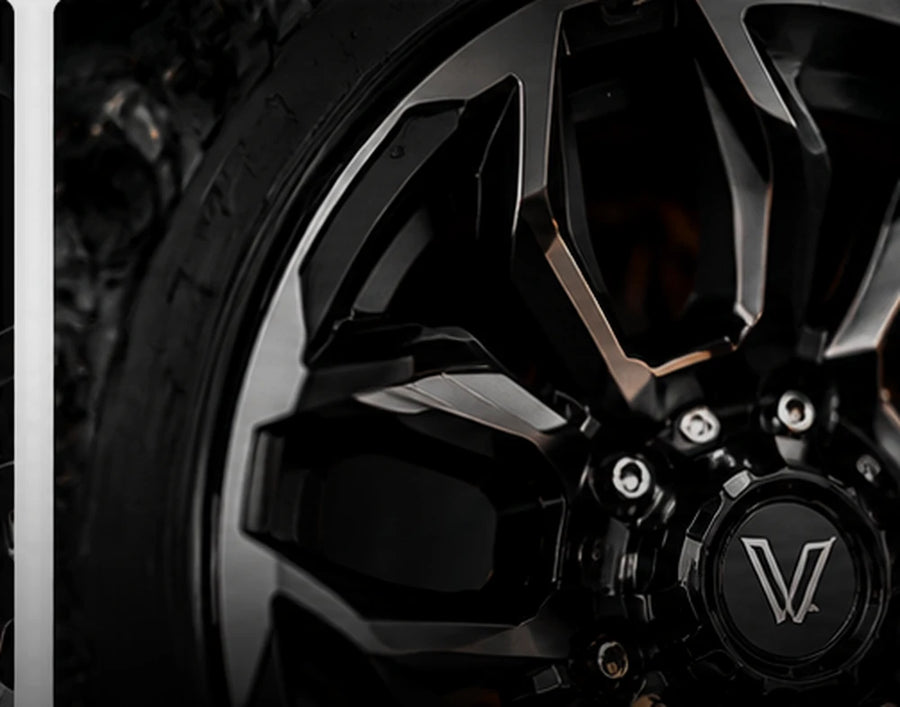

5 X 114.3
UTV Wheels
Shop Wheels

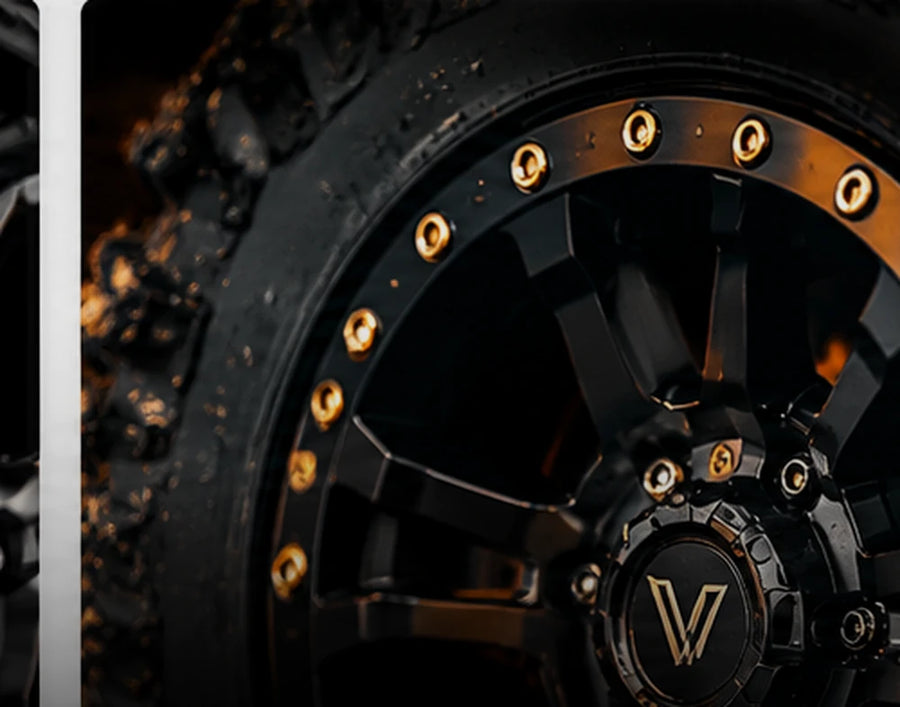

6 X 139.7
UTV Wheels
Shop WheelsImportant
Fitment Information
Always verify fitment before purchasing or installation. Wheel fitment can vary by year, trim and model. The information on this page is a guide based on manufacturer specifications and trusted sources.
If you have any questions about fitment for your specific machine, contact our team — we're here to help ensure you get the right setup.
- Fits most stock and aftermarket hubs
- Verify model year and trim level
- Check bolt pattern, center bore and lug thread
- Use the recommended installation kit
- Contact us if you're unsure about fitment
